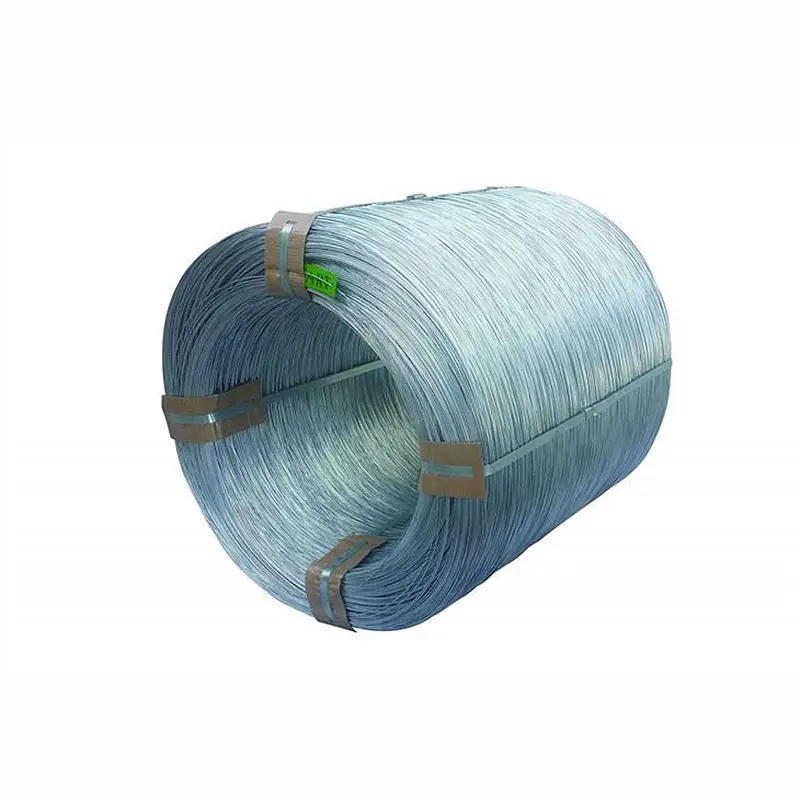

Galvanized steel wire is a carbon steel wire that is galvanized on the surface by hot-dip or electroplating. Its performance is the same as that of straightened and tempered steel wire. It can be used as unbonded prestressed tendons, but at least 200-300g of zinc should be plated per square meter. It is often used as a parallel wire cable for cable-stayed br
Size
1.2-8.0mm
Packing
Coil, Spool, Z2, Z3
Zine
40g/m2~800g/m2
Standard
JIS G 3547, YB/T 5294; BS EN 10244-2; ASTM A641; etc.
Packing:
（mm）Size
Coil Size
Spool Packing
Big Coil Packing
（mm）ID
（mm）OD
0.15—0.26
6寸
1—14㎏
0.27—0.60
8寸
1—100㎏
0.61—1.60
12、14、16寸
1—100㎏
250-400
400-770
1.61—6.00
450
800
508
840
The surface of galvanized steel wire is smooth and clean, without cracks, knots, thorns, scars and rust. The tensile strength should be between 900Mpa-2200Mpa (wire diameter Φ0.2mm-Φ4.4mm). The number of twists (Φ0.5mm) should be more than 20 times, and the repeated bending should be more than 13 times.
The thickness of the hot-dip zinc layer is 250 g/m. Greatly improve the corrosion resistance of steel wire.
