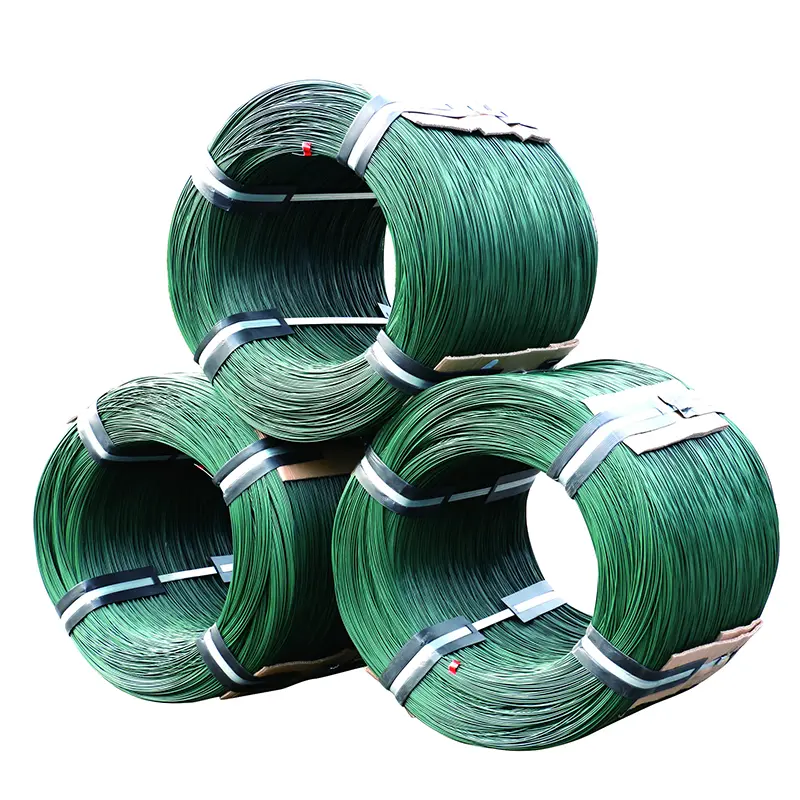

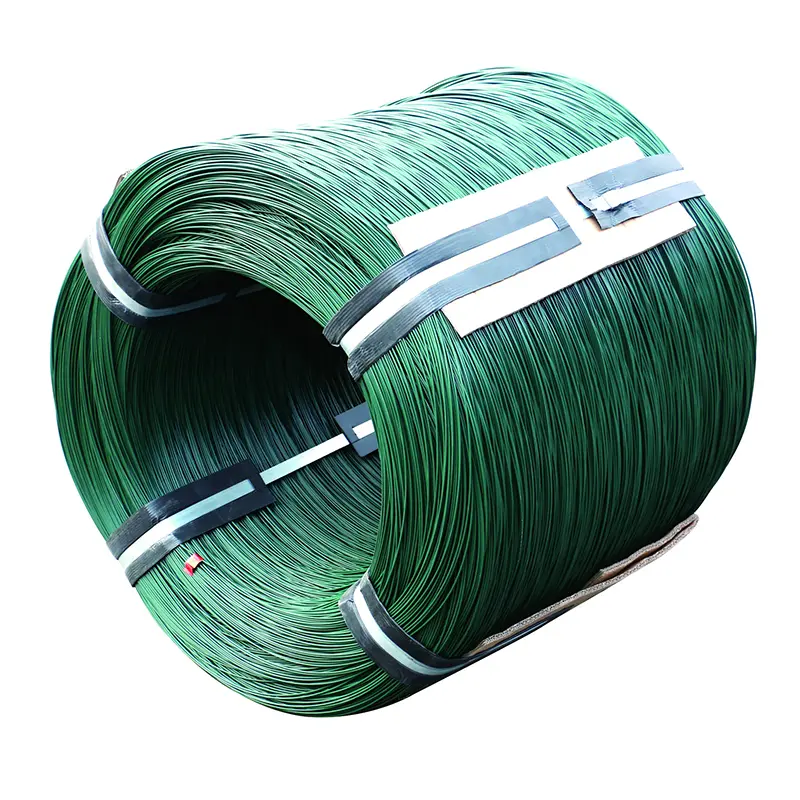

Wire For Fence Pvc Pe Coated Wire

Steel Wire product with specification and export packing support

Inner Dia.   Range(mm)
Outer Dia.   Range(mm)
Tensile (Mpa)
Elongation
Zinc coating(g/m2)
Packing Size
Weight/Package
(%)
2.00-4.00
as request
390-500
10
black Annealed
Coil
1kg/coil-800kg/coil
Electro Galvanized
Hot Dipped Galvanized
Diameter Properties
Standard Galvanized Wire is manufactured to comply with the following diameter tolerances:
Nominal Wire Diameter
Tolerance (mm)
over 2.00mm up to and incl. 3.00mm
+/-0.02
over 3.00mm up to and incl. 4.00mm
+/-0.03
Steel Chemistry
A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.
Tensile Grade
% Carbon
% Phosphorus
% Manganese
% Silicon
% Sulphur
Soft
0.05~0.15
0.035
0.5 ~1.00
0.10~0.34
0.041
Standard
0.45~0.50
0.032
0.5 ~1.00
0.10~0.34
0.041
High
0.59~0.63
0.035
0.5 ~1.10
0.10~0.35
0.045
Extra-High
0.65~0.83
0.035
0.5 ~1.10
0.10~0.35
0.045
Packing:
1) All the products are packed with seaworthy packing.
2) Customer’s special requirement for packing can be satisfied.
3) Air freight; sea freight and truck freight are all available.
Material: PE, PVC material, anti UV and anti-aging additives.
Variety: plastic coated wire mainly includes PVC coated wire, black iron wire, galvanized iron wire, stainless steel wire, copper wire, etc.
Uses: widely used in animal breeding, agriculture and forestry pr
