Steel Wire Rope

Steel Rope product with specification and export packing support

Tensile Grade
% Carbon
% Phosphorus
% Manganese
% Silicon
% Sulphur
Standard
0.45~0.50
0.032
0.5 ~1.00
0.10~0.34
0.041
High
0.59~0.63
0.035
0.5 ~1.10
0.10~0.35
0.045
Extra-High
0.65~0.83
0.035
0.5 ~1.10
0.10~0.35
0.045

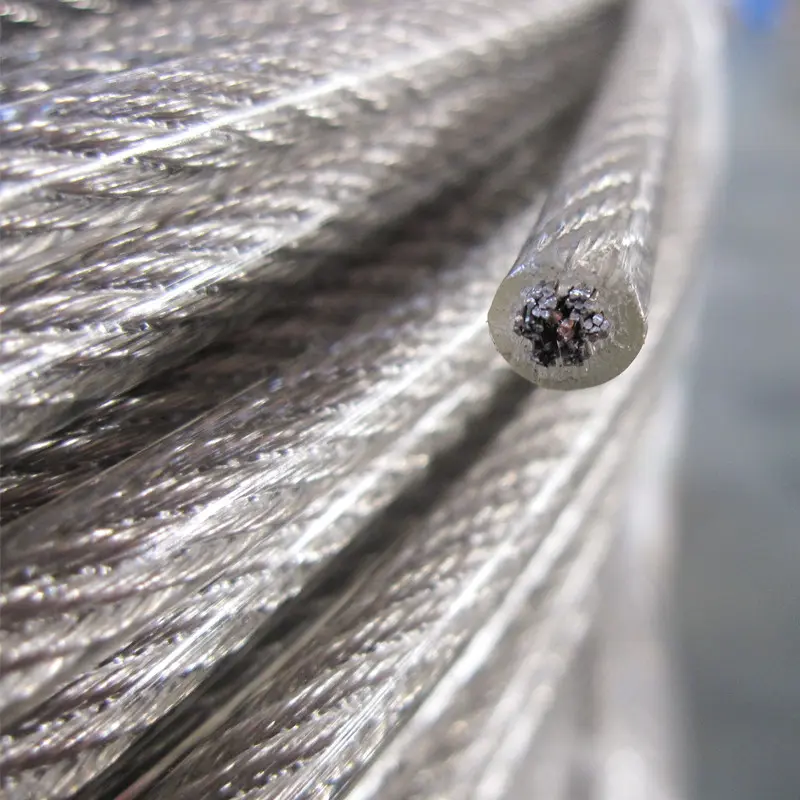

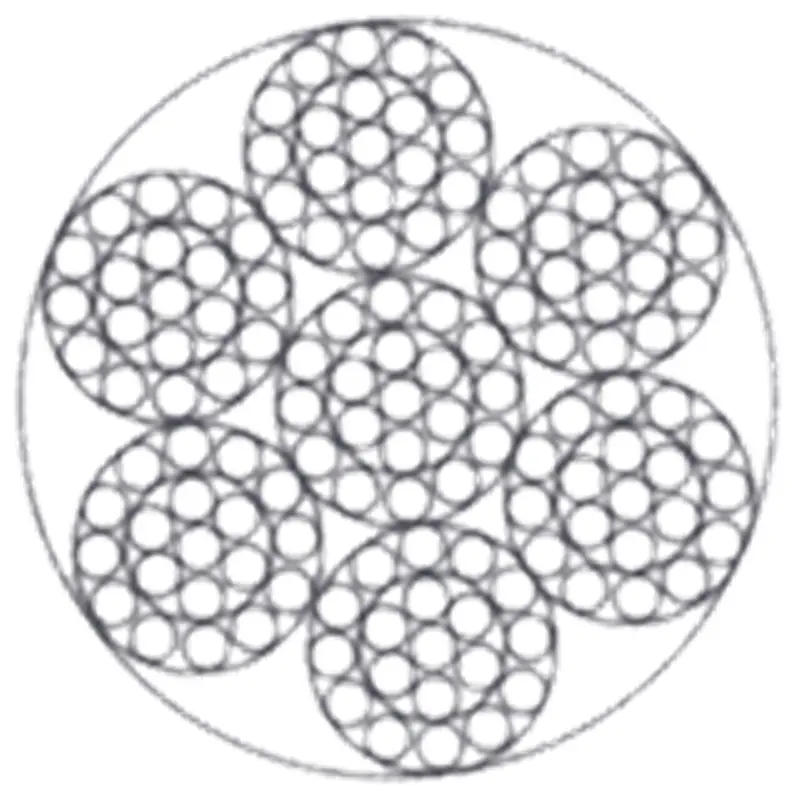

Steel wire rope   is a spiral steel wire bundle that twists the steel wires with mechanical properties and geometric dimensions meeting the requirements together according to certain rules. It is composed of steel wire, rope core and grease. It has high strength, light self weight, stable operation, not easy to break the whole one suddenly, and reliable operation. It is a rope twisted into strands by multi-layer steel wires, and then twisted into a spiral shape by a certain number of strands with the rope core as the center. In material handling machinery, it is used for lifting, traction, tensioning and bearing.
Form:
Steel wire: steel wire rope   needs to bear alternating load during use, and its service performance is mainly determined by steel wire mechanical properties, steel wire surface state and structure.
Rope core: the main function of the rope core is to support the steel wire rope   to achieve a stable cross-sectional structure. The rope core includes steel core and fiber core. The fiber core includes natural fiber core and synthetic fiber core. The natural fiber core includes sisal, jute, cotton thread, etc., and the synthetic fiber core includes p
