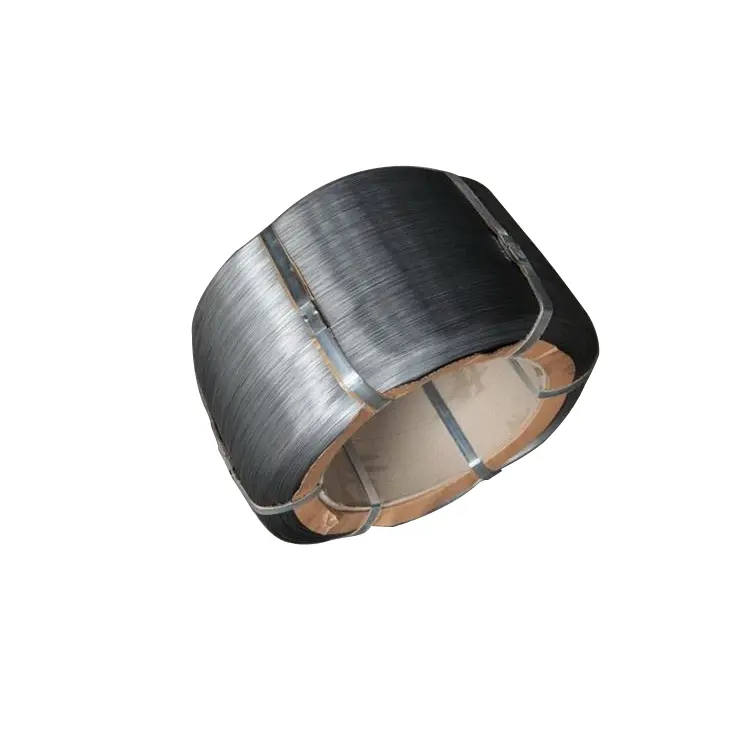

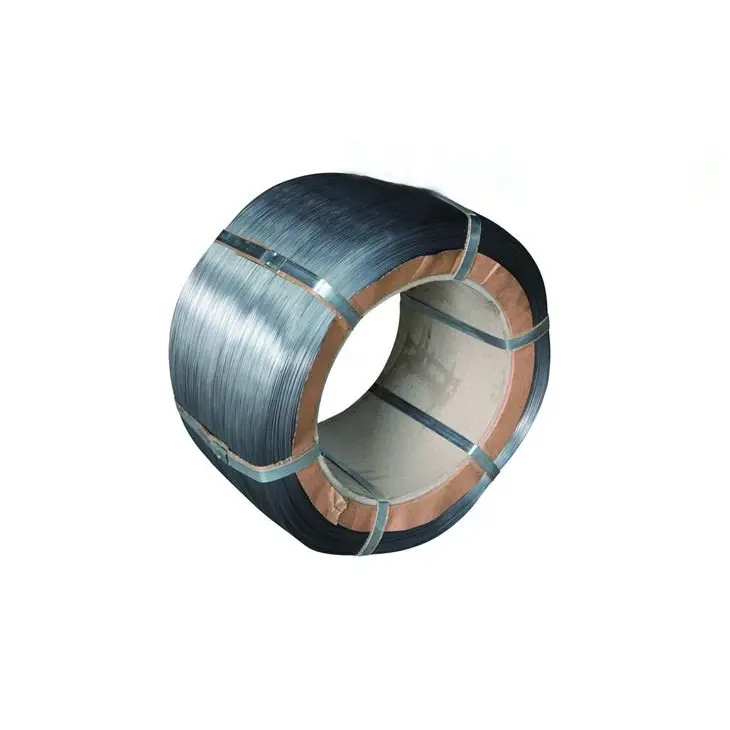

Steel Wire For Automotive System

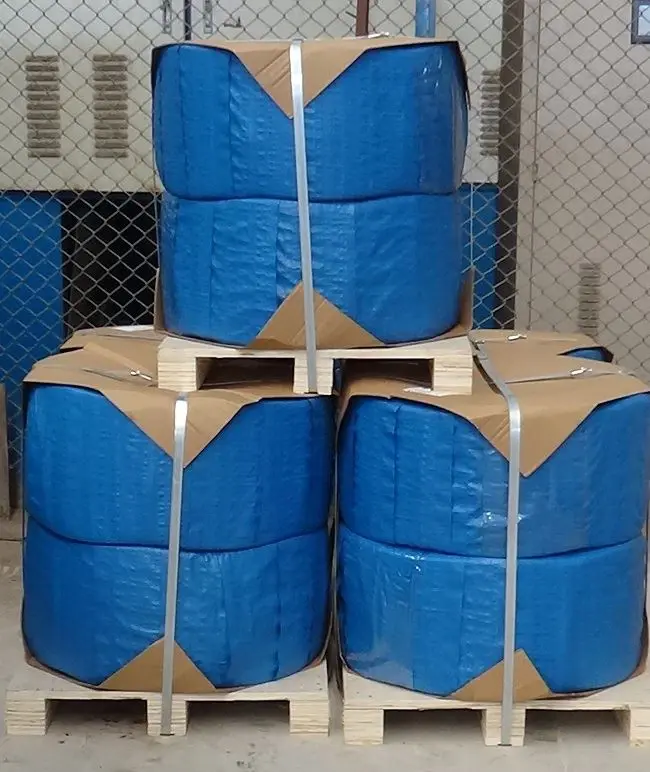

Steel Wire product with specification and export packing support

Product Name
Steel Wire
Place of origin
Tianjin, China
Brand
Fengyuan
Use
Automotive System
Galvanised Wire Working Specifications
Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between tensile strength.
Nominal Diameter
Minimum number   of   reverse bends
Minimum number   of   Torsions (Bright and Class B)
(Bright and   Class B)
1770 Mpa
1960 Mpa
2160Mpa
1770 Mpa
1960 Mpa
2160Mpa
over 0.6mm ~ incl.0.65mm
11
10
9
28
25
23
over 0.65mm ~ incl.0.70mm
10
9
8
28
25
23
over 0.70mm ~ incl.0.75mm
16
15
14
28
25
23
over 0.75mm ~ incl.0.80mm
15
14
13
28
25
22
over 0.80mm ~ incl.0.85mm
13
12
11
28
25
22
over 0.85mm ~ incl.0.90mm
12
11
10
28
25
22
over 0.90mm ~ incl.0.95mm
11
10
9
28
25
22
over 0.95mm ~   incl.1.00mm
10
9
8
28
25
22
over 1.00mm ~ incl.1.10mm
17
16
14
26
23
21
over 1.10mm ~     incl.1.20mm
16
15
13
26
23
21
over 1.20mm ~ incl.1.30mm
15
14
13
25
22
20
over 1.30mm ~ incl.1.40mm
13
12
10
25
22
19
over 1.40mm ~ incl.1.50mm
11
10
9
25
22
19
over 1.50mm ~ incl.1.60mm
14
13
12
25
22
19
over 1.60mm ~ incl.1.65mm
13
12
11
25
22
19
over 1.65mm ~ incl.1.70mm
13
12
11
25
22
19
over 1.70mm ~ incl.1.80mm
11
11
10
25
22
19
over 1.80mm ~incl.1.85mm
10
10
8
24
21
18
over 1.85mm ~ incl.1.90mm
10
10
8
24
21
18
over 1.90mm ~ incl.2.00mm
9
9
7
24
21
18
Nominal Diameter
Minimum mass   of   coating (g/m2)
Class B
over
