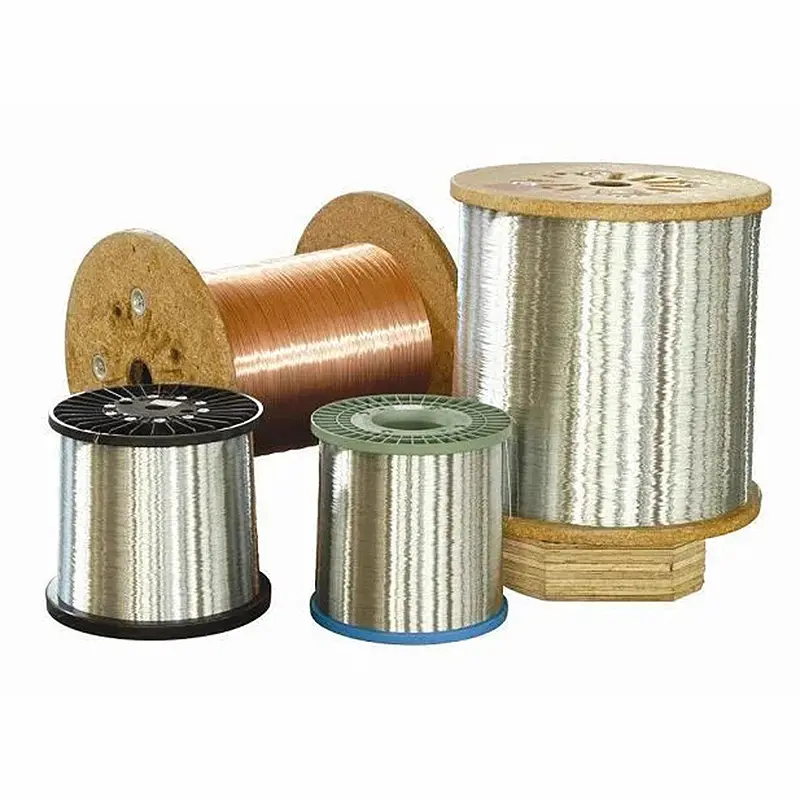

Saddle stitching usually refers to “wire tack”, and instead of using pre-made staples, a machine cuts a length of wire from a rolled wire during production, staples it into the paper, and Bend the wire on the other side of the paper to secure it.
Origin
Chinese mainland
Processing service
Electro galvanized or copper
Brand
Fengyuan
Package

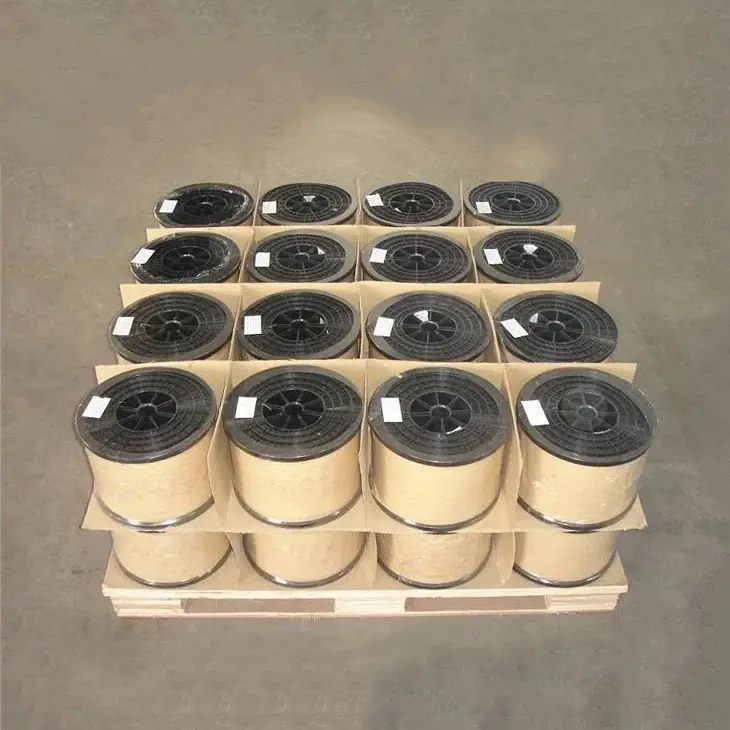

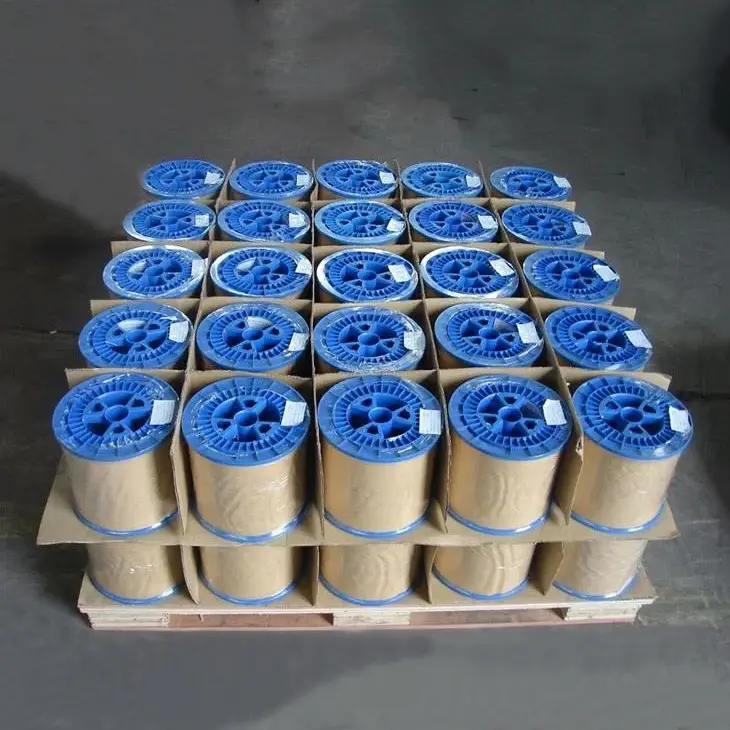

Coil or Spool
Galvanizing Technology
Electrogalvanized
Surface
Electro galvanized or copper
Diameter： 0.4 mm, 0.45 mm, 0.50 mm, 0.55 mm, 0.60 mm, 0.70 mm, 0.80 mm, 0.90 mm, 1.00mm
Tensile Strength Range: A. 925-1130N/mm2; B.1000-1200N/mm2 or as custom-made
Tolerance of the Diameter： ±0.01mm
Zinc Coating： 8-16g/m2
Application: Staple、Paper clip, round wire for stitching various kinds of magazines, books etc.
Steel Chemistry:
A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.
Tensile Grade
% Carbon
% Phosphorus
% Manganese
% Silicon
% Sulphur
Standard
0.45~0.50
0.032
0.5 ~1.00
0.10~0.34
0.041
High
0.59~0.63
0.035
0.5 ~1.10
0.10~0.35
0.045
Extra-High
0.65~0.83
0.035
0.5 ~1.10
0.10~0.35
0.045
Company Profile:
Tianjin Fengyuan Supply Chain is a group of international economic entity, including affiliated enterprise and manufacture:Tianjin Tiankang Metal Product Co., Ltd. Tianjin Tongfu Metal Product Co., Ltd., Export Trading company : Tianjin Fengyuan Trade Co., Ltd. and HK company: Fengyuan Trade Co., Limited..
Our Company mainly specializes in importing and exporting metal material and metal products, and we also do transit trade, domestic trade and agent
