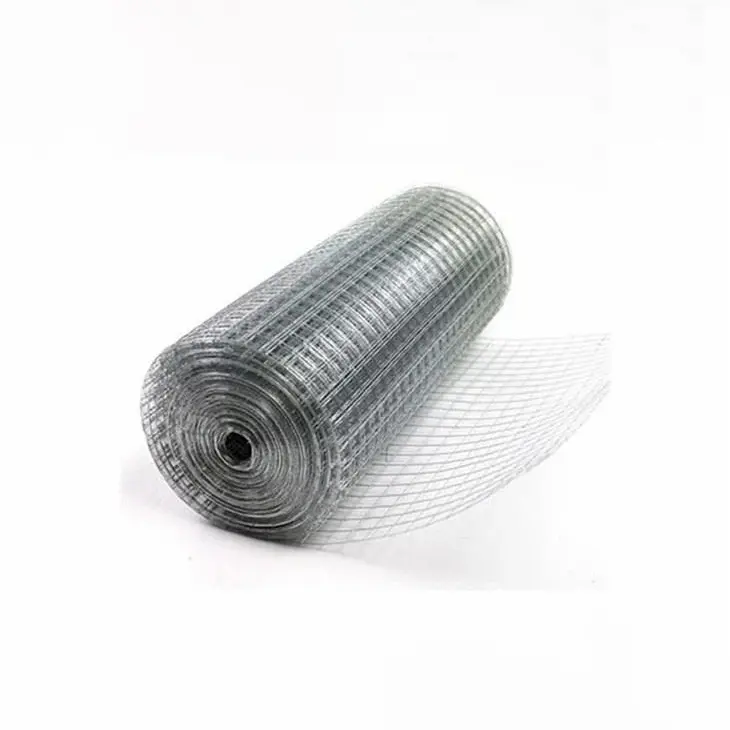

Plain Welded Wire Mesh

Steel Mesh product with specification and export packing support

Welded wire mesh, also known as plain welded wire mesh  or galvanized steel wire mesh, is a widely used fence mesh, which is welded by high-quality low-carbon steel wires in rows. After surface passivation and plasticization treatment such as cold plating, hot plating, PVC coating, etc., the surface is smooth, the mesh is uniform, the weld is firm, the local processability is good, and the stability is good.
Parameter
Galvanized Wire Used For Armouring
Size：1.5-6.0mm
Products Description:
STANDARD   WELDED WIRE MESH
Width of the   Mesh:0.3-2.5mm, 30m/roll
MESH
WIRE GAUGE
AVALIABLE
INCH
MM
1/5” x 1/5”
5.08 x 5.08
0.4-1.0mm
Hot dipped   galvanized after/before welding;
Electro   galvanized  after/before welding;
PVC coated;
Stainless   steel;
1/4” x 1/4”
6.35 x 6.35
0.4-1.0mm
1/3” x 1/3”
8.50 x 8.50
0.5-1.6mm
3/8” x 3/8”
9.53 x 9.53
0.5-1.6mm
1/2” x 1/2”
12.70 x   12.70
0.5-1.6mm
5/8” x 5/8”
15.87 x   15.87
0.5-1.6mm
2/3” x 2/3”
16.90 x   16.90
0.8-1.8mm
3/4” x 3/4”
19.05 x   19.05
0.8-1.8mm
1” x 1”
25.40 x 25.40
0.5-2.5mm
1” x 1/4”
25.40 x 6.35
0.8-1.8mm
1” x 1/2”
25.40 x   12.70
0.5-2.5mm
1-1/2” x   1-1/2”
38.10 x   38.10
0.5-3.0mm
1” x 2”
25.40 x   50.80
0.5-3.0mm
2” x 2”
50.80 x   50.80
0.5-3.0mm
PVC-coated
