Phosphated Steel Wire For Automotive Seats

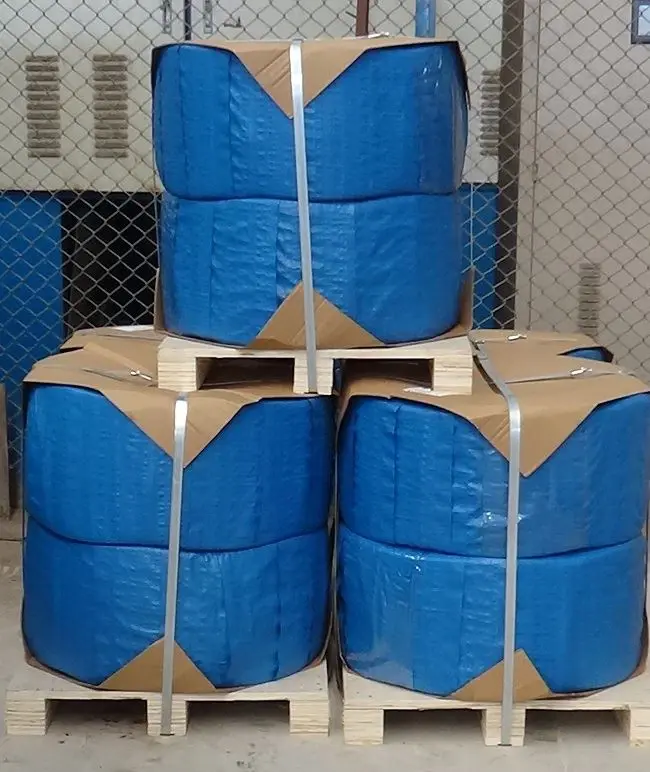

Steel Wire product with specification and export packing support

Product Name
Phosphated Steel Wire
Place of origin
Tianjin, China
Brand
Fengyuan
Use
Automotive Seats
Hard Drawn Low Carbon Wire has been cold drawn to the required diameter and heat treatment is available. Often used for plating, redrawing and coating, it is important that the surface finish of the wire is clean and smooth. It will take moderate bending or flattening, machine ability is fair and the wire can be roll threaded.
This is a general purpose manufacturing wire suitable for a large range of applications. Various applications include super market trolleys, shelving, baskets, racks, hooks and general automotive parts.
Hard Drawn Low Carbon Wire Specifications
Diameter Properties
Hard Drawn Low Carbon Wire is manufactured to comply with the following diameter tolerances:
Nominal Wire Diameter
Tolerance (mm)
1.60mm up to   and incl. 1.80mm
+/- 0.02
over 1.80mm up   to an incl. 2.80mm
+/- 0.03
over 2.80mm up   to and incl. 5.00mm
+/- 0.03
over 5.00mm up   to and incl. 8.00mm
+/- 0.03
Tensile Strength (MPa)
The tensile strength is defined as the maximum load achieved in the tensile test, divided by the cross-sectional area of the wire test. The tensile strength developed depends on the amount of reduction in area to the finished size. Tensile is not considered of prime importance to this product however the following table is given as a general guide:
Nominal Wire   Diamete
