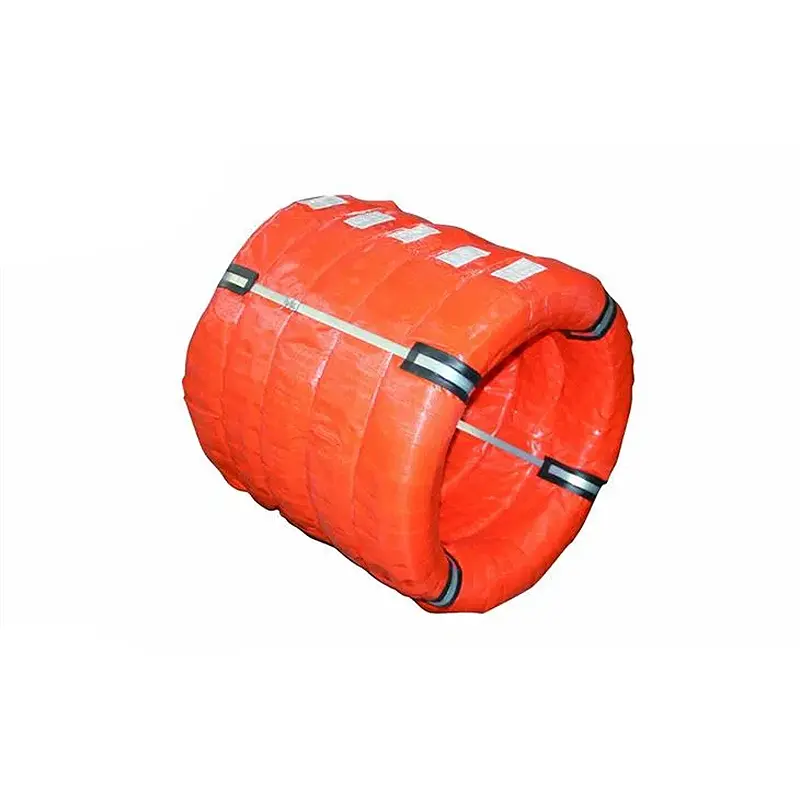

Mini Coils

Steel Wire product with specification and export packing support

Product Information:
Galvanized Wire   is made to  BS EN 10244. The metallic zinc coatings applied by the galvanizing process are an effective way of combating corrosion in steel. Galvanized wire for general manufacturing purposes is available in a standard galvanized coating or a heavy galvanized coating.
Standard galvanized coatings are smoother, however less corrosion resistant than heavy galvanized coatings and are often used in normal wire working applications. Some typical end users include cages, bucket handles, coat hangers and baskets.
Heavy galvanized coatings are used in conditions where atmospheric corrosion is severe. End users include crop support wires where chemicals are used, pool fencing or chain mesh in coastal areas.
Additional Info:
Diameter Range: Std. Gal. 0.15-8.00 mm
Diameter Range: Heavy Gal 0.90-8.00 mm
Surface Finish: Standard & Heavy Galvanized
Galvanised Wire Working Specifications
Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between standard, heavy galvanized and extra-high galvanized wire.
Nominal Diameter
Minimum   Coating Mass (g/m2)
Standard Galv.
Heavy Galv.
Extra-highGalv.
over 0.15mm up     to and incl. 0.50mm
15
30
over   0.5mm up   to and incl. 0.75mm
30
130
over   0.75mm up   to and incl. 0.85mm
25
130
over 0.85mm up   to and incl. 0.95mm
25
140
over 0.95m
