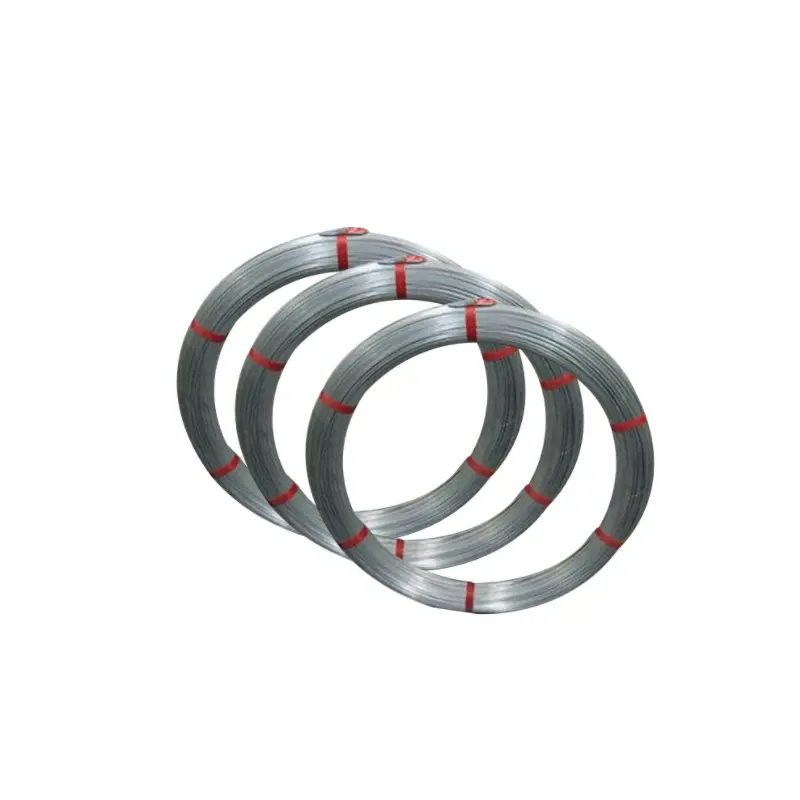

Galvanized Oval Wire

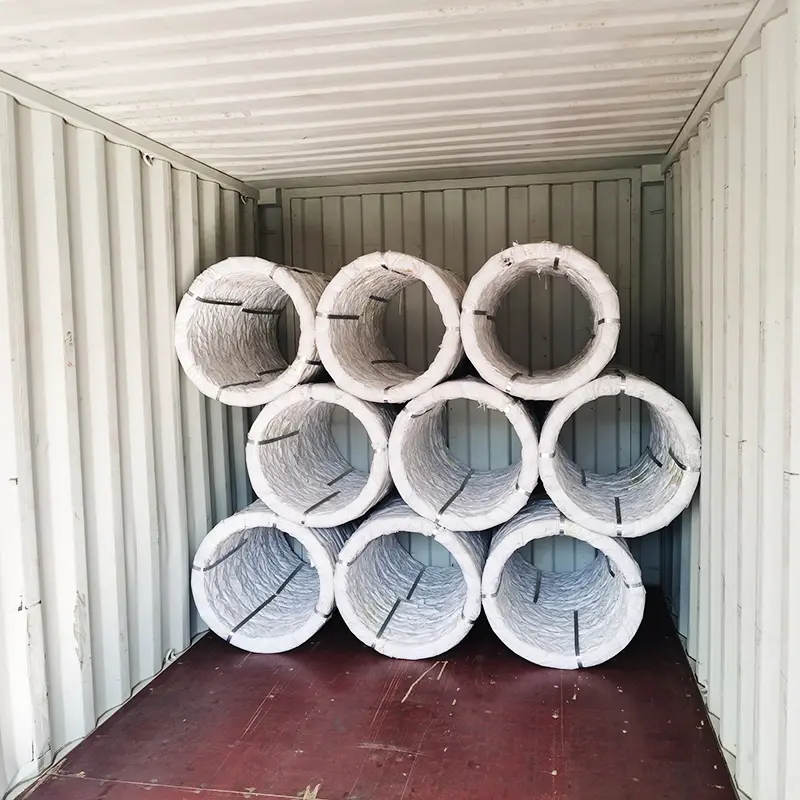

Steel Wire product with specification and export packing support

Product Information:
Galvanized Oval Wire as high tensile strength structures,which is corrosion, rust resistance, solid, durable and extremely versatile,widely used by landscapers, craft makers, building and constructions, ribbon manufacturers, jewelers and contractors. It is mainly as cattle fence wire to  fence  cattle farms in special place such as flooded lands,seashore farms, Ellipse, Agriculture, Fencing, Horticulture, Vineyard, Handicrafts, Trellis, and Horticulture structures, etc.

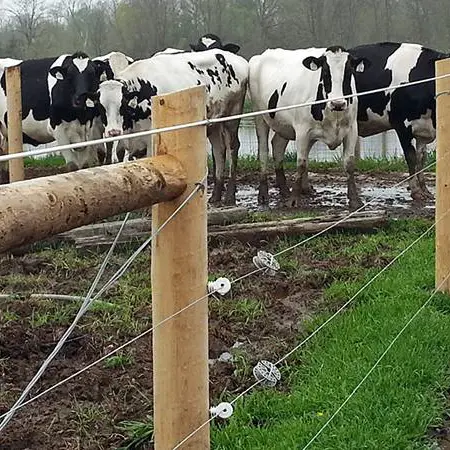

Galvanized Steel Oval Wire for cattle fence
Galvanised Wire Working Specifications
Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between standard, heavy galvanized and extra-high galvanized wire.
Nominal Diameter
Minimum Coating Mass (g/m2)
Standard Galv.
Heavy Galv.
Extra-highGalv.
2.4 mm * 3.00mm
50
90
230
1.8 mm * 2.20mm
50
90
230
2.0 mm * 2.4mm
50
90
230
2.2 mm * 2.70mm
50
90
230
4.45mm * 5.25mm
35
50
230
Tensile Strength (Mpa)
The tensile strength is defined as the maximum load achieved in the tensile test, divided by the cross-sectional area of the wire test piece. Galvanized Wire is produced using soft, medium and hard grade wires. The following table specifies the tensile range according to the grade:
Nominal Wire Diameter
Bread Loading (kgf)
Standard Galv.
Heavy Galv.
Extra-highGalv.
2.4 mm * 3.00mm
60
