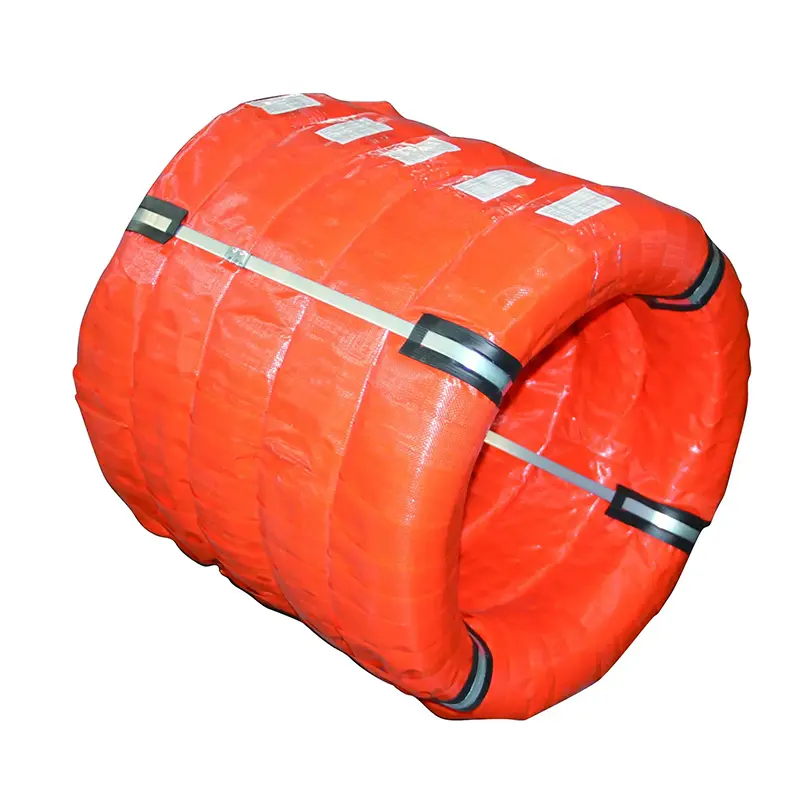

Material: : Q195/Q235/SAE1006/SAE1008 Wire Diameter: : 1.20mm-6.00mm(BWG 3-18) Wire Tolerance: : ±0.03mm Zinc Coating: : 30-600g/㎡ AL: : >5% or >10% Tensile Strength: : 350-550MPA/450-550MPA(As your requirement) Packing: : Coils(500-1000kgs),Spools Standard: : ASTM,BS,DIN,GB,JIS Application: : Gabion wire mesh, Gabion Box, Fence, Wire Rope etc. Port: : Tianj
Sr.No. 1
2.20 mm diameter of wire - Galfan
1 Tensile Strength 350-500 N/MM2 EN 10223/ EN 10244
2 Tensile Elongation 10% Minimum EN 10223/ EN 10244
3 Diameter of wire 2.2mm (+/-) 0.06 EN 10223/ EN 10244
4 Zinc Coating on wire (90% Zn +10% Al) 230 GSM Minimum EN 10223/ EN 10244
5 Zinc Adhesions on wire Zinc shall not crack during testing of wire NA (Visual Observation) EN 10223/ EN 10244
Sr.No. 2
2.70 mm diameter of wire - Galfan
1 Tensile Strength 350-500 N/MM2 EN 10223/ EN 10244
2 Tensile Elongation 10% Minimum EN 10223/ EN 10244
3 Diameter of wire 2.7 (+/-) 0.06MM EN 10223/ EN 10244
4 Zinc Coating on wire (90% Zn +10% Al) 245 GSM Minimum EN 10223/ EN 10244
5 Zinc Adhesions on wire Zinc shall not crack during testing of wire NA (Visual Observation) EN 10223/ EN 10244
Sr.No. 3
3.4 mm diameter of wire - Galfan
1 Tensile Strength 350 - 500 N/MM2 EN 10223/ EN 10244
2 Tensile Elongation 10% Minimum EN 10223/ EN 10244
3 Diameter of wire 3.4MM (+/-) 0.07 MM EN 10223/ EN 10244
4 Zinc Coating on wire (90% Zn +10% Al) 265 GSM Minimum EN 10223/ EN 10244
5 Zinc Adhesions on wire Zinc shall not crack during testing of wire NA (Visual Observation) EN 10223/ EN 10244

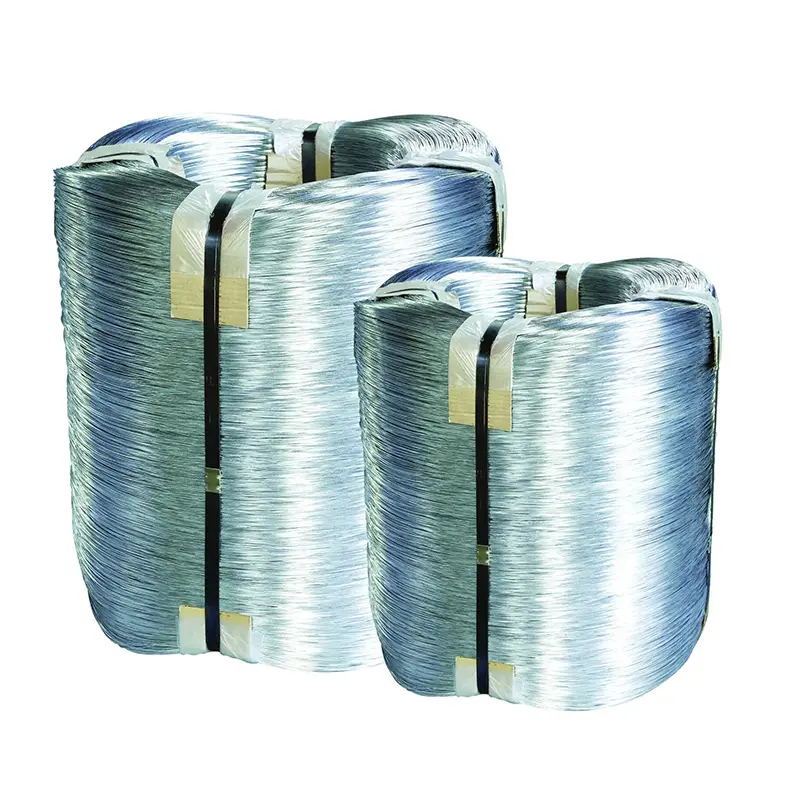

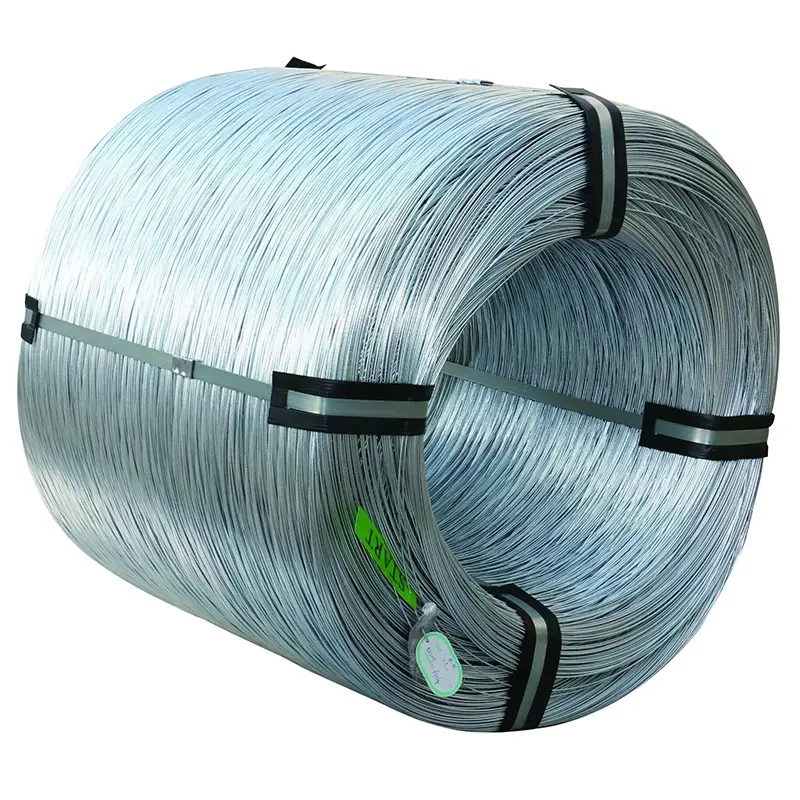

China Galfan wire is covered with Zn-Al (Al 5%, Zn 95% or Al 10%, Zn 90%) alloy.Zn-Al alloy steel wire has strong corrosion resistance and self-healing capacity,and it's crossion resistance capacity is 5-10 times that of common p
