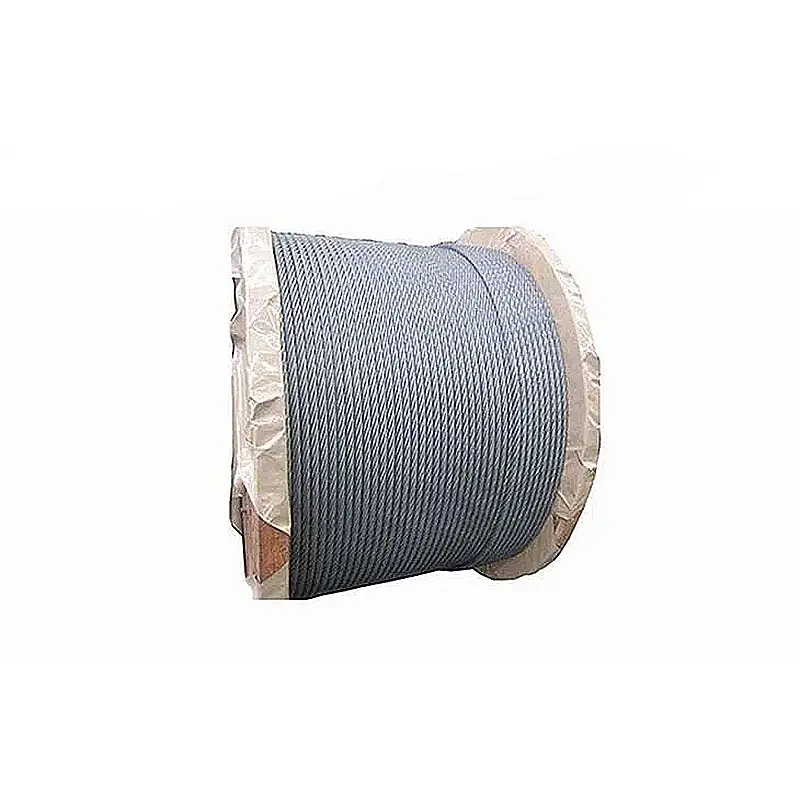

Elevator Steel Wire Rope

Steel Rope product with specification and export packing support

Supply Ability:
Supply Ability
6000000 Meter/Meters per Month
Packaging & Delivery:
Packaging Details
1) packing in wooden spool 50 – 4000 meters
2) packing in coil 50 – 4000 meters
3)loadig capacity 60000 meter in 20 feet container
Port:XINGANG,CHINA
Quantity(Meters)
1 - 25
>25
Est. Time(days)
7
To be negotiated
Detailed imformation about the quality of our products:
1.Standards.
we meet GB,YB ,ASTM, DIN,EN ,JIS, KS ,IEC standards
2.Raw materials:
42A, 62A, 72A  JIS G 3506
3.Range of tensil strength:
Size of products(mm)
Tensil strength(mpa)
6-16
1370-1770
4.Packing.
Size of products(mm)
Size of coil
Spool packing
Big coil packing(ID/OD MM)
6-16
305/570
Application:
Daily maintenance:
1. Since the steel wire rope is composed of multiple steel wires (for example, the 8*19S structure steel wire rope is composed of 152 steel wires), under the working state, the relative slippage of the steel wire caused by the bending of the steel wire rope will generate a large friction force. The grease can reduce the friction between the steel wires on the premise of ensuring the friction between the steel wire rope and the traction sheave, and effectively prolong the service life of the steel wire rope.
2. The elevator wire ropes have been initially lubricated by a special spraying process, and all the wire rope surfaces are covered with a lubricating layer. If the wire rope surface is cleane
