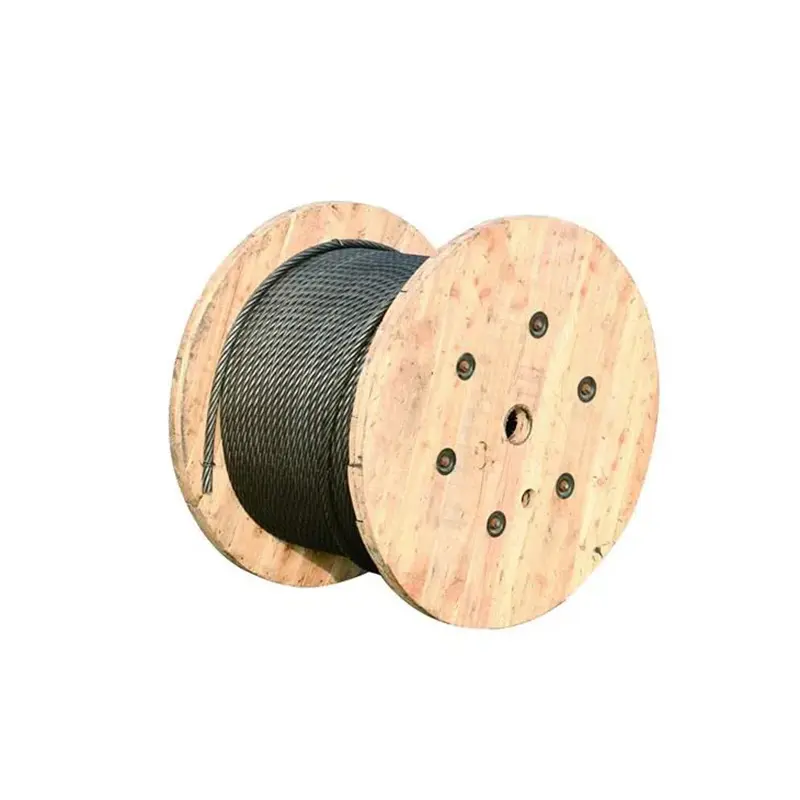

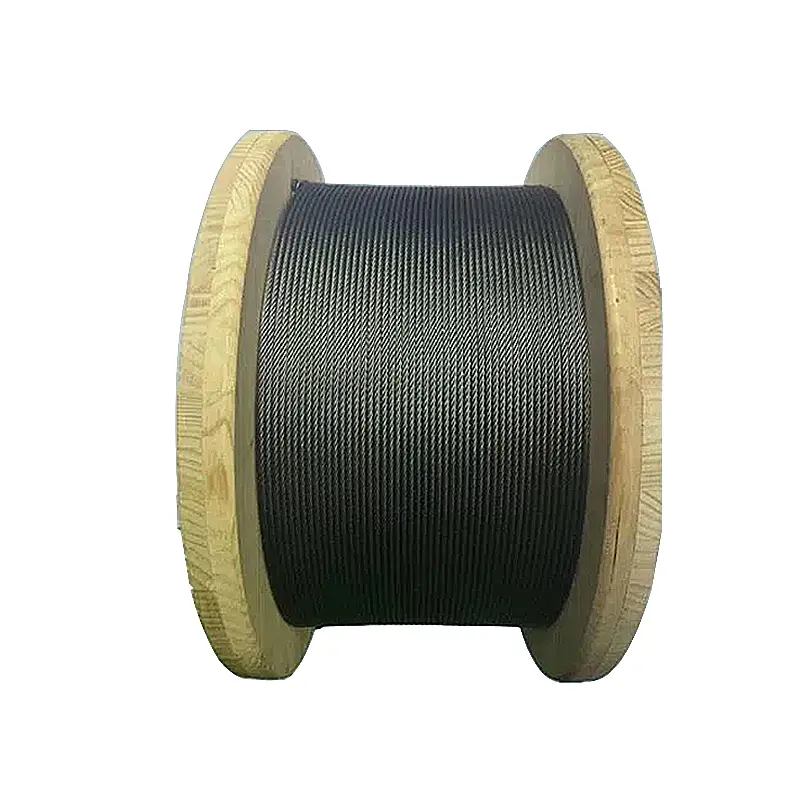

Elevator Steel Wire Rope Class 8×19

Steel Rope product with specification and export packing support

Technical Data:
Nominal diameter
Approx. weight
Minimum breaking load
1370 – 1770N/mm 2
1570N/mm2
1770N/mm 2
1960N/mm 2
mm
Kg/m
kN
8
0.26
35.8
35.7
40.3
44.7
9
0.33
45.3
45.2
51
56.5
10
0.407
55.9
55.9
63
69.8
11
0.492
67.6
67.6
76.2
84.4
12
0.586
80.5
80.5
90.7
100
13
0.688
94.5
94
106
118
14
0.798
110
110
124
137
15
0.919
126
127
143
158
16
1.04
143
143
161
179
17
1.18
162
183
203
18
1.32
181
204
226
19
1.47
202
228
253
20
1.63
224
252
279
22
1.97
271
305
338
24
2.34
322
363
402
26
2.75
378
426
472
27
2.97
408
460
509
28
3.19
438
494
547
29
3.43
472
532
589
30
3.68
506
570
631
32
4.17
572
645
715
Elevator Steel Wire Rope Class 8×19
8×19 S + IWRC (1-9-9)
8x19W+IWRC (1-6-6+6)
8x25F+IWRC (1-6-6F+12)
8x26WS+IWRC (1-5-5+5-10)
Steel Chemistry:
A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.
Tensile Grade
% Carbon
% Phosphorus
% Manganese
% Silicon
% Sulphur
Standard
0.45~0.50
0.032
0.5 ~1.00
0.10~0.34
0.041
High
0.59~0.63
0.035
0.5 ~1.10
0.10~0.35
0.045
Extra-High
0.65~0.83
0.035
0.5 ~1.10
0.10~0.35
0.045
Lay type: regular lay
Lay direction: right hand lay
On request options: Galvanized/ ungalvanized, left hand, Dual tensile, greasing level.
Steel Grade: High Carbon Steel Wire Rod: 40#45#60# 65# 70# 72A# 82B
Application: Elevator
Lay: Right hand re
