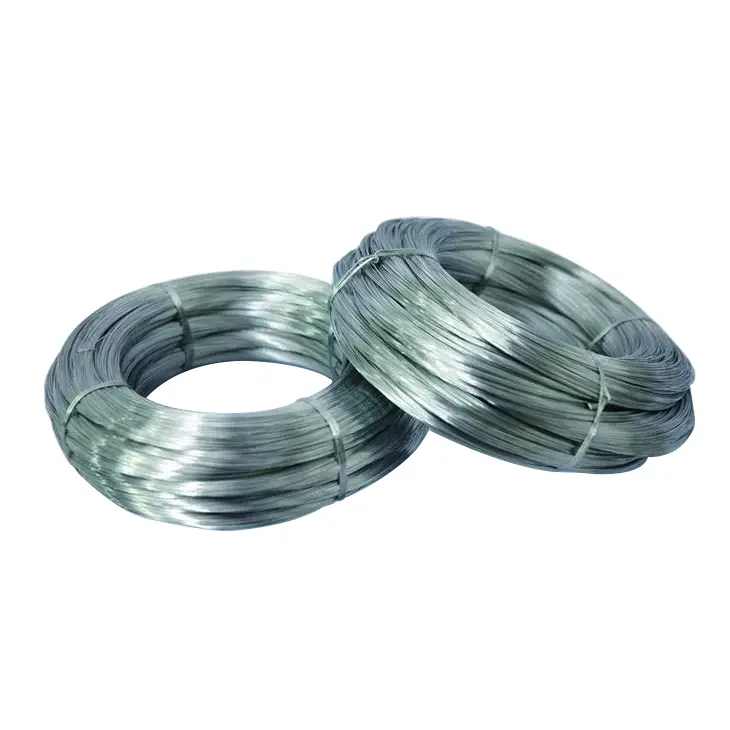

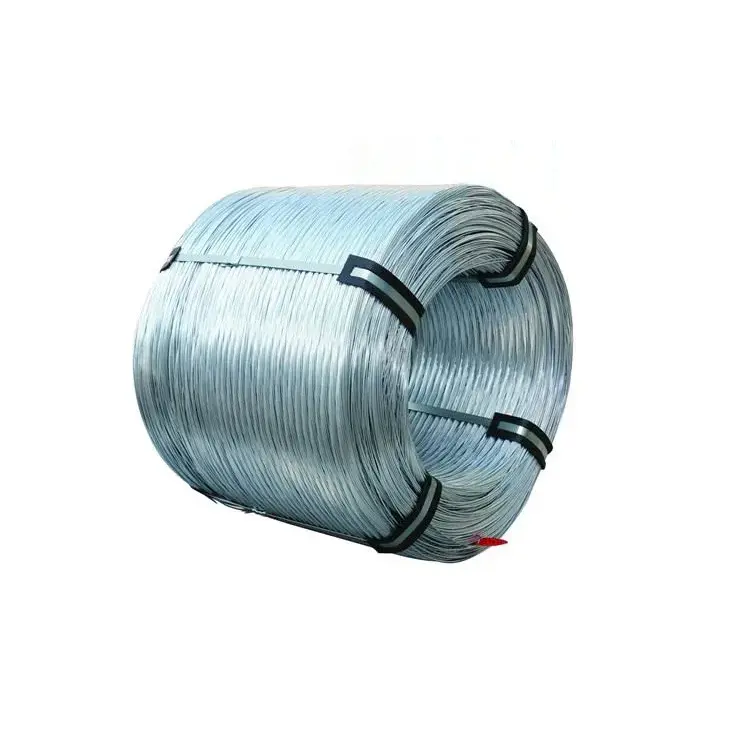

Electro Galvanized Iron Wire(Metal Wire Mesh)

Steel Wire product with specification and export packing support

The metallic zinc coatings applied by the galvanizing process are an effective way of combating corrosion in steel.
Galvanised Wire Working Specifications
Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between tensile strength.
Nominal Diameter
Minimum Coating Mass (g/m2)
over 0.6mm up to and incl. 0.65mm
25
over 0.75mm up to and incl. 0.85mm
25
over 0.85mm up to and incl. 0.95mm
25
over 0.95mm up to and incl. 1.06mm
25
over 1.06mm up to and incl. 1.18mm
25
over 1.18mm up to and incl. 1.32mm
30
over 1.32mm up to and incl. 1.55mm
30
over 1.55mm up to and incl. 1.80mm
30
over 1.80mm up to and incl. 2.24mm
30
over 2.24mm up to and incl. 2.72mm
35
over 2.72mm up to and incl. 3.15mm
35
over 3.15mm up to and incl. 3.55mm
45
over 3.55mm up to and incl. 4.25mm
50
over 4.25mm up to and incl. 5.00mm
50
Diameter Properties
Standard Galvanized Wire is manufactured to comply with the following diameter tolerances:
Nominal Wire Diameter
Tolerance (mm)
over 0.80mm up to and incl. 1.60mm
+/-0.03
over 1.60mm up to and incl. 2.50mm
+/-0.03
over 2.50mm up to and incl. 4.00mm
+/-0.03
over 4.00mm up to and incl. 6.00mm
+/-0.03
over 6.00mm up to and incl. 10.00mm
+/-0.03
Tensile Strength (Mpa)
The tensile strength is defined as the maximum load achieved in the tensile test, divided by the cross-sectional area of the wire
