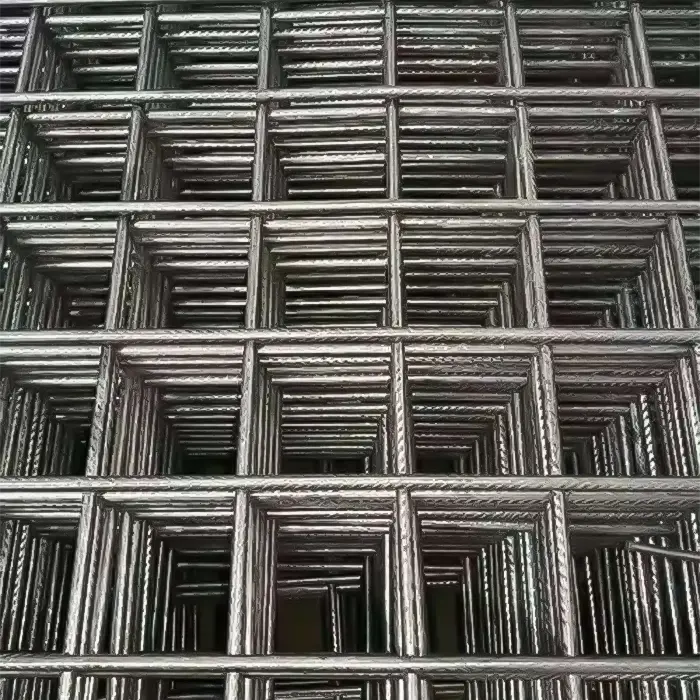

Cold Rolled Ribbed Steel Welded Wire Mesh

Steel Mesh product with specification and export packing support

Welded steel mesh  is quickly becoming one of the most popular construction materials in the industry. This material is known for its high strength, cost-effectiveness and durability. One of the main advantages of this material is that it can be made in flat, rectangular or square sheets, which makes installation and transport a breeze.
Information
1. Material: CRB550
2. High strength,Tensile strength is exceeding 550Mpa.
3. Type: Reinforced Mesh
4. Application: construction
5. Weave Style: Plain Weave
6. Wire Diameter: 4mm-12mm
7. Technique: Welded Mesh
8. Model Number: Steel bar welded mesh
Feature:
1. Very convenient to install, saving 70% of installing time compared to manually bound mesh.
2. Saving more than 30% of steel bars, reducing overall costs by more than 10%.
3. Facilitating enhancement of project quality, reducing surface cracking of roads, ground and concrete floors of buildings by more than 75%.
Products Description:
Mainly   specifications for the cold-rolled ribbed bar steel welded mesh
Wire   diameter
3mm-16mm
Material
Low carbon   steel rod
Length
1m-12m or as   per customized
Width
0.5m-3m
Usage
Road, bridge   and tunnel,building
Hole shape:
Rectangle,Square
Mesh    opening:
100–400MM
Features
High tension   strength
special   welded steel fabric specifications can be customed
Standard
BS44B3   BRITISH STANDARD
Ref
Stad
Longitudinal
Cross Wires
Pitch of
No.
