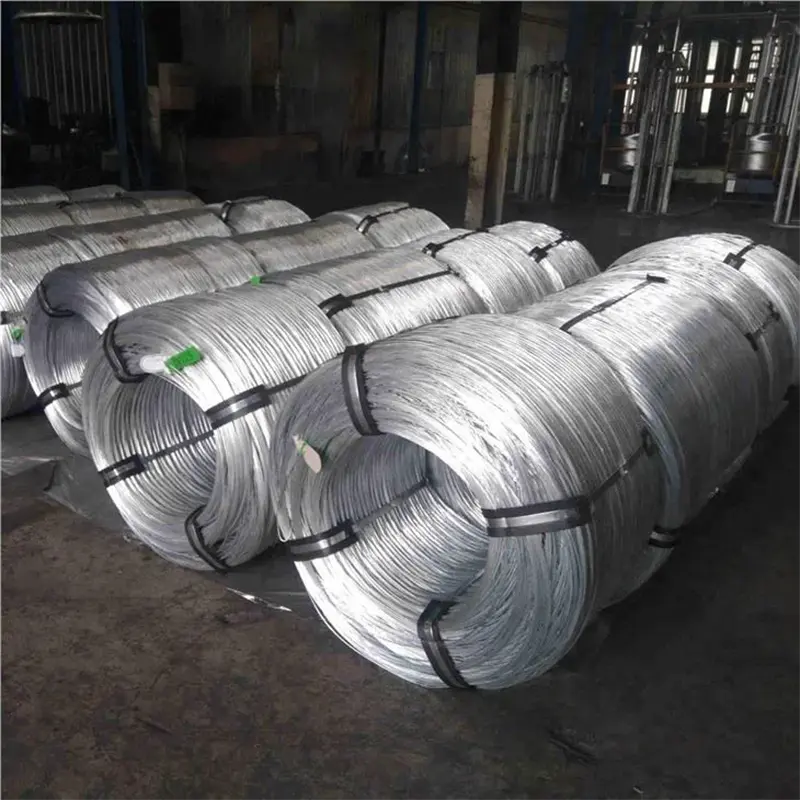

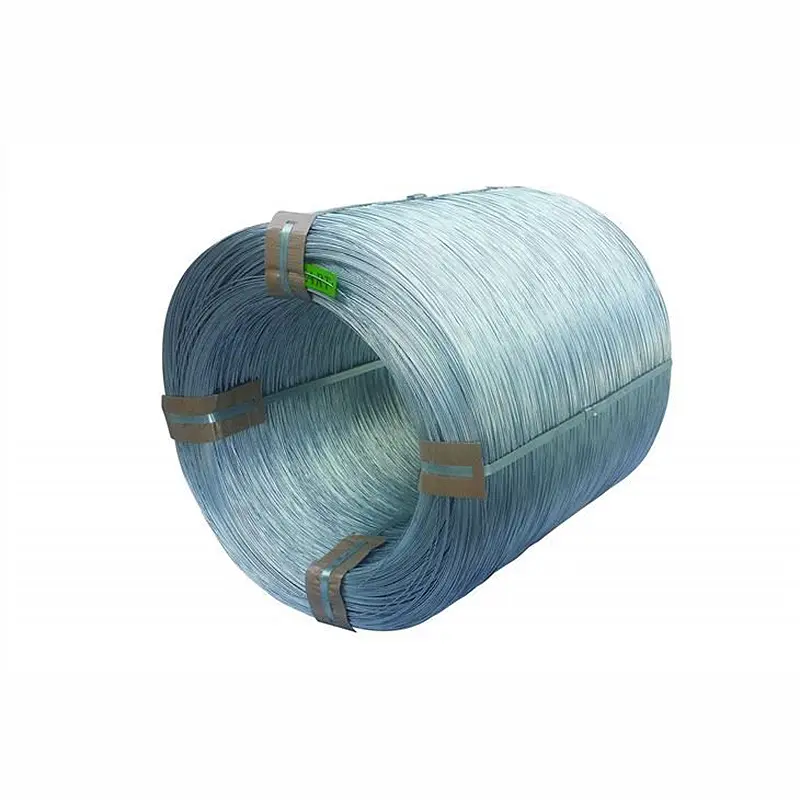

Chain Link Wire

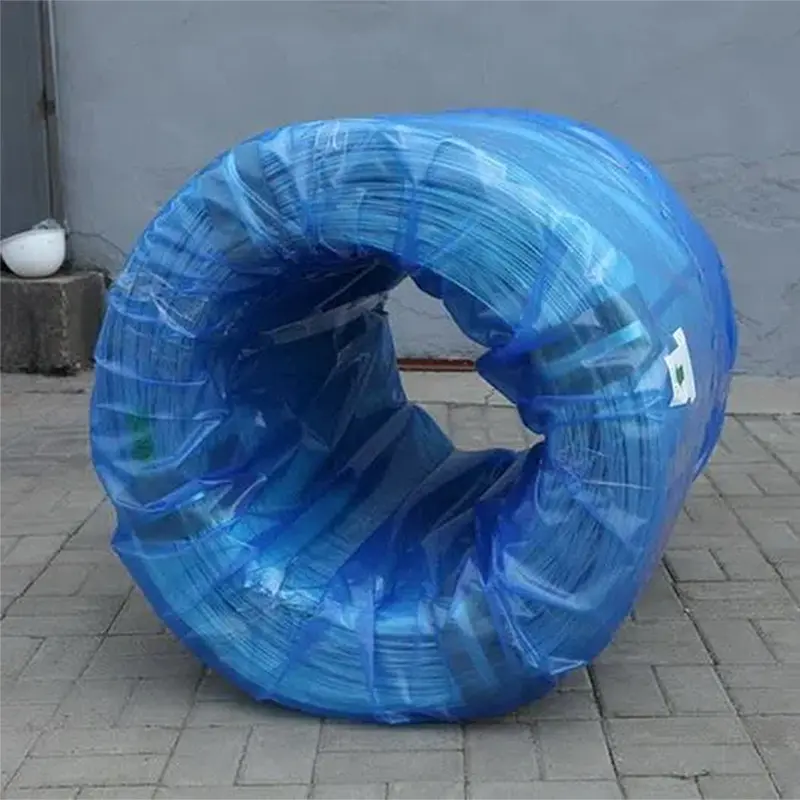

Steel Wire product with specification and export packing support

Feature:
1. Durable and corrosion resistant.
2. Sufficient inventory, can be ordered in large quantities.
3. Quality assurance, long service life.
Wire Specifications
Diameter Tolerances
Nominal Wire Diameter
Tolerance (mm)
over 0.80mm up to and incl. 1.60mm
+/-0.03
over 1.60mm up to and incl. 2.50mm
+/-0.03
over 2.50mm up to and incl. 4.00mm
+/-0.03
over 4.00mm up to and incl. 5.00mm
+/-0.04
over 5.00mm up to and incl. 8.00mm
+/-0.04
Galvanised Coating Weight – AS3863; EN 10244; ASTM A 641
Wire Diameter
Wire Diameter
Minimum Ctg Mass Class 1 (g/m2)
Minimum Ctg Mass Class 2 (g/m2)
Minimum Ctg Mass Class 3 (g/m2)
(mm)
(inch)
2.41
0.095
90
245
365
2.68
0.106
90
245
365
2.74
0.108
90
245
365
2.79
0.11
90
245
365
3.38
0.133
90
245
365
3.4
0.134
90
245
365
3.68
0.145
90
245
365
Tensile Strength (MPa)
The tensile strength is defined as the maximum load achieved in a tensile test divided by the cross sectional area of the wire test piece. The tensile strength range is 448-517 MPa; 551-620 MPa; 65000psi~75000psi;80000psi~90000psi
Steel Chemistry
A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.
Tensile Grade
% Carbon
% Phosphorus
% Manganese
% Silicon
% Sulphur
Standard
0.04~0.07
0.032
0.5 ~1.00
0.10~0.34
0.041
High
0.1~0.18
0.035
0.5 ~1.10
0.10~0.35
0.045
