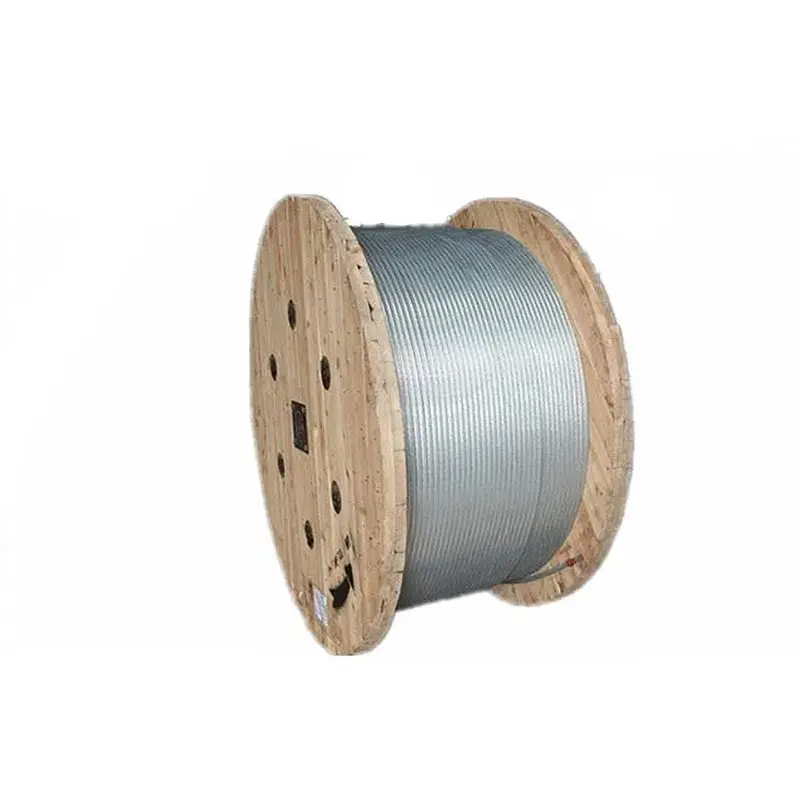

BS 302 Standard Galvanized Steel Wire Rope

Steel Rope product with specification and export packing support

Product Information:

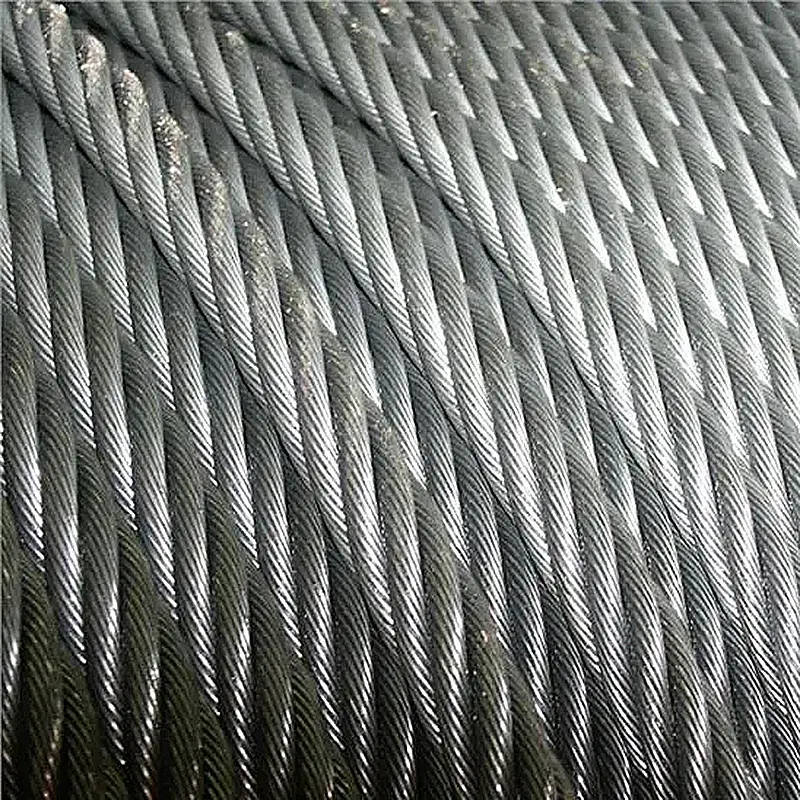

The steel wire rope is a helical wire bundle in which the steel wires whose mechanical properties and geometric dimensions meet the requirements are twisted together according to certain rules. The steel wire rope is composed of steel wire, rope core and grease. The steel wire rope is first twisted into strands by multiple layers of steel wires, and then twisted into a helical rope by a certain number of strands with the rope core as the center. In material handling machinery, it is used for lifting, pulling, tensioning and carrying. The steel wire rope has high strength, light weight, stable operation, not easy to break suddenly and reliable operation.
Steel Chemistry:
A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.
Tensile Grade
% Carbon
% Phosphorus
% Manganese
% Silicon
% Sulphur
Standard
0.45~0.50
0.032
0.5 ~1.00
0.10~0.34
0.041
High
0.59~0.63
0.035
0.5 ~1.10
0.10~0.35
0.045
Extra-High
0.65~0.83
0.035
0.5 ~1.10
0.10~0.35
0.045
Quality Control:
We use total quality control system. Every pieces of the raw material; semi-finished products and finished products are tested and recorded in file. The tracking record is used from final products to the very first beginning raw material steel factories.
Third Part like SGS is avai
