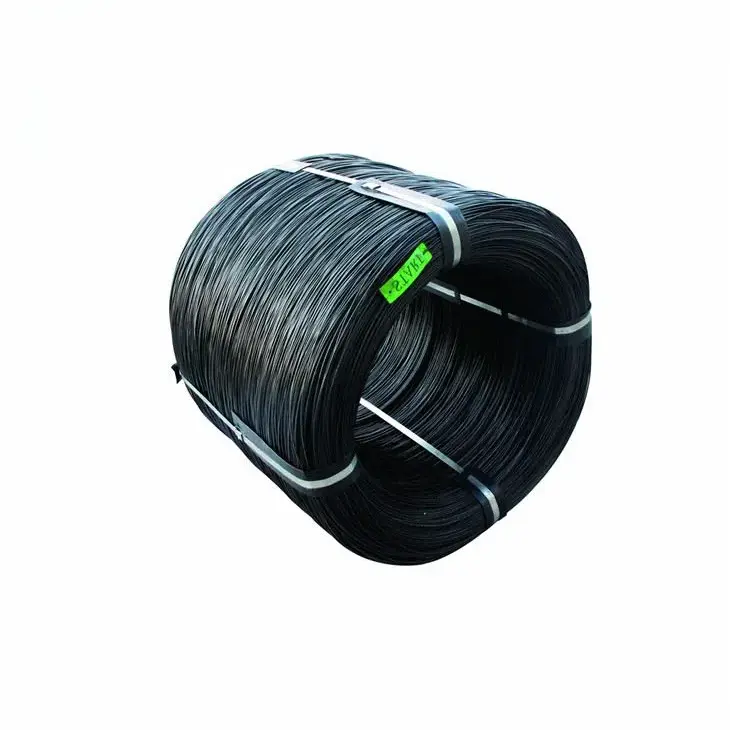

Black Annealed Wire Packaging Line

Steel Wire product with specification and export packing support

MATERIAL
WIRE
TENSILE STRENGTH
500-1100(MPA)
CROSS-SECTIONAL SHAPE
ROUND
APPLICATION
CHRISTMAS TREE, FLATTENING, CABLE, SILK FLOWER BRANCHES AND RODS, FRUIT BAGS, VAPOR FILTER MESH, DEEP PROCESSING OF WIRE MESH
CROSS-SECTIONAL SIZE
1.6-12.5(MM)
BRAND
Fengyuan
Features:Black annealed wire is softer and more flexible than ordinary black iron wire , with uniform softness and color consistency.
Advantage
1. Factory supply, sufficient stock of various types
2. Solid material, reliable quality, not easy to break
3. Complete specifications, support customization.
4. Beautiful appearance, delicate and luster.
5. Good flexibility, firm bundling
Additional Info
Diameter Range: 1.60-12.50 mm
Diameter Range: 1.90-12.50 mm
Diameter Range: 4.00-7.80 mm
Hard Drawn Low Carbon Wire Specifications
Diameter Properties
Hard Drawn Low Carbon Wire is manufactured to comply with the following diameter tolerances:
Nominal Wire   Diameter
Tolerance (mm)
1.60mm up to   and incl. 1.80mm
+/- 0.02
over 1.80mm up to an incl. 2.80mm
+/- 0.03
over 2.80mm up   to and incl. 5.00mm
+/- 0.03
over 5.00mm up to and incl. 8.00mm
+/- 0.03
Tensile Strength (MPa)
The tensile strength is defined as the maximum load achieved in the tensile test, divided by the cross-sectional area of the wire test. The tensile strength developed depends on the amount of reduction in area to the finished size. Tensile is not considered of
