Barbed Wire

Steel Wire product with specification and export packing support

Product Information:
Material
Galvanized Steel Wire
Use
Anti-Theft,Animal Husbandry
Structure
Double Twist (Multiple)
Brand
Fengyuan

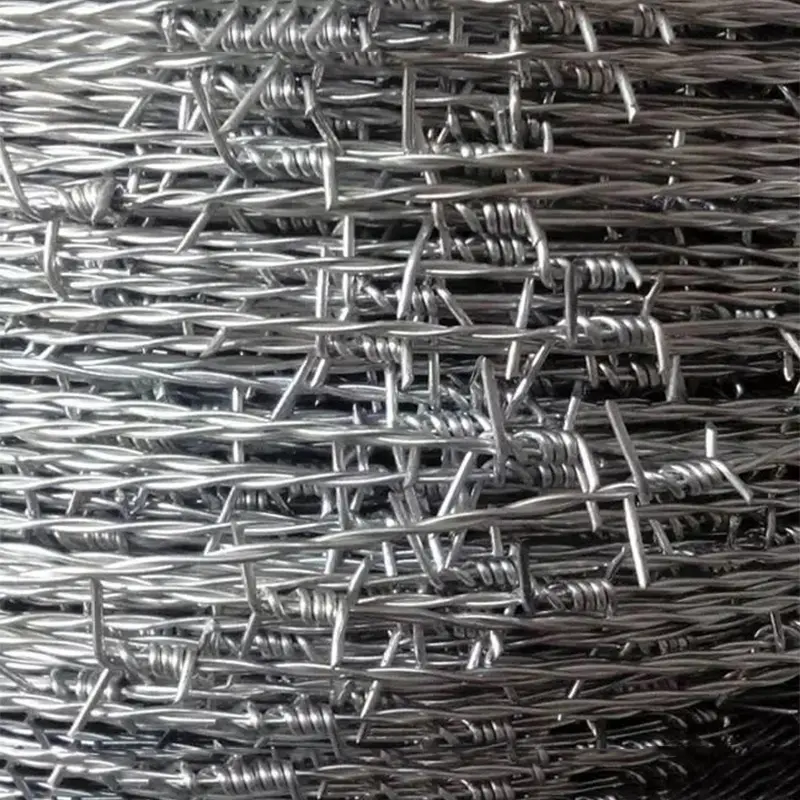

Barbed wire is an isolation and protective net made by twisting the barbed wire around the main wire (strand wire) through a barbed wire machine through a variety of weaving processes.
There are three twisting methods of barbed wire : forward twist, reverse twist, forward and reverse twist.
Positive twisting method: It is to twist two or more iron wires into a double-strand wire rope and then wrap the barbed wire around the double-strand iron wire.
Anti-twisting method: firstly wrap the barbed wire around the main wire (that is, a single wire), then add another wire and twist it into a double-strand barbed wire.
Positive and negative twisting method: It is twisting in the opposite direction from the direction where the barbed wire wraps the main wire. Not twisting in one direction.
Specification
Type
Wire Gauge
Barb Distance (cm)
Barb Length (cm)
(SWG)
Electric Galvanized Barbed Wire ; Hot-dip zinc plating barbed wire
10# x 12#
7.5-15
1.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#

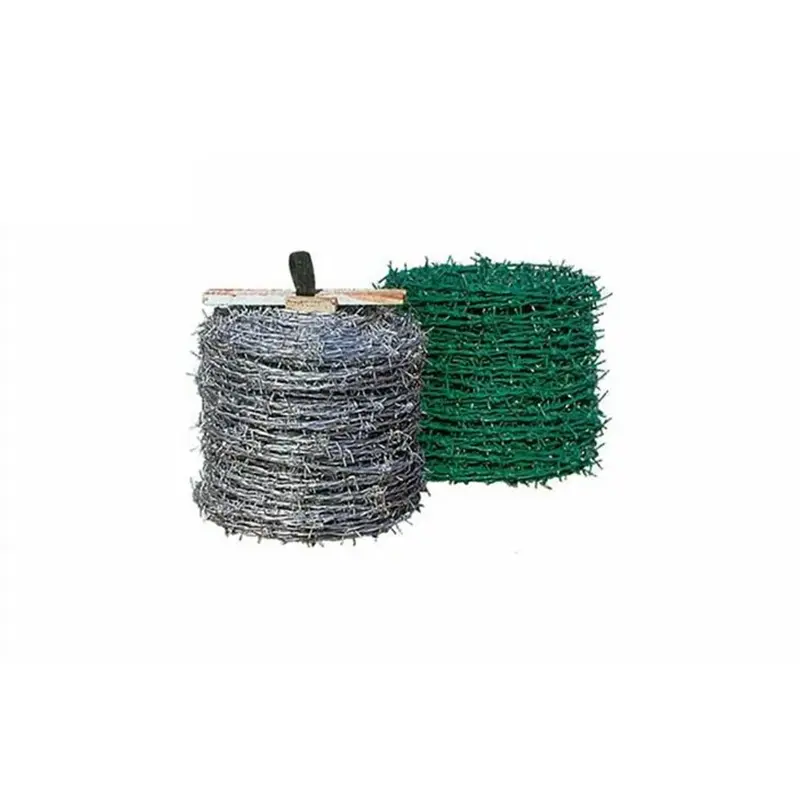

PVC coated barbed wire
before coating
after coating
7.5-15
1.5-3
1.0-3.5mm
1.4-4.0mm
PE barbed wire
BWG11#-20#
BWG8#-17#
SWG11#-20#
SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request
