ACRS Trench Mesh manufacturer reinforcing mesh sheets AS/NZS4671

Steel Mesh product with specification and export packing support

Trench Mesh  Concrete reinforcement  welded wire mesh  with ACRS certificate.
ACRS Trench Mesh /Reinforcing Mesh  for concrete Manufacturer
Surface
Ribbed/Round bars
Wire diameter
4MM-12MM
Opening mesh
100*200mm,150*200mm etc
Width
0.5M-2.4M
Length
0.5M-6M
Material
CRB
Tensile Strength
550mpa or according to Request
Technology
Welded mesh
Application
Construction, Building etc

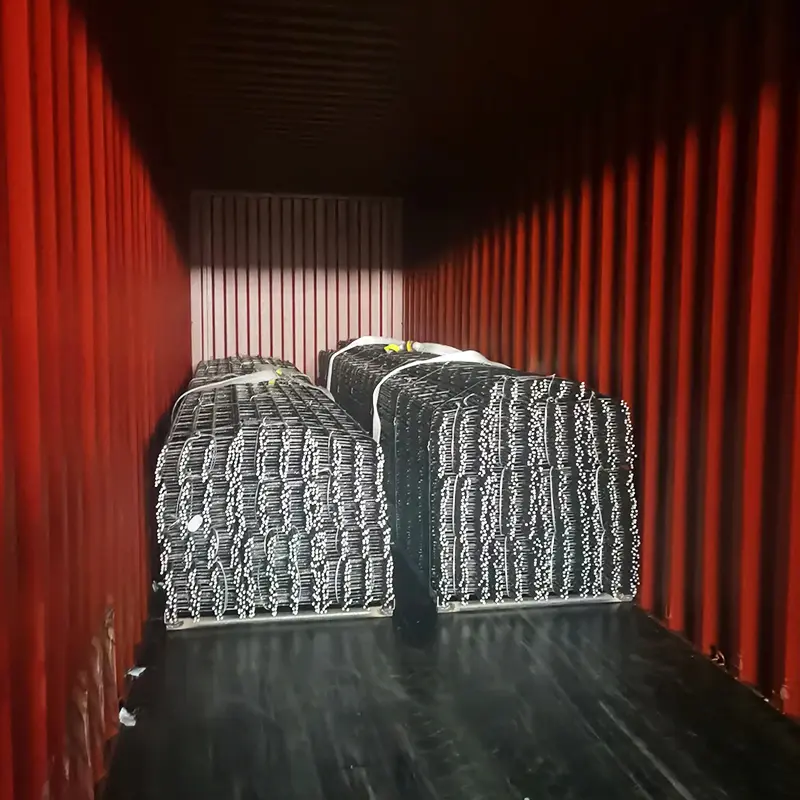

Packing
Unique Export Packing(Roll or Sheet)
Certificate
ACRS(SL,RL)
Standard
Australia Standard or According to the Drawing
Delivery time
5 days or According to the quantity
Payment Terms
30%T/T Prepayment and balance against the B/L copy.
Samples
Free
Hot Size
L11TM,L12TM etc
Trench Mesh  is made specifically for use in residential footing trenches. Made from grade D500L ribbed reinforcing wire,Trench Mesh is made using a variety of longitudinal wires up to 12mm diameter.
Associated standards:
AS/NZS 4671 : 2001 Steel reinforcing materials.
Application:
1>Slab on Grade reinforcement
2>Walls Systems
3>Topping Slabs
4>Architectural precast wall panels
5>Tilt-up construction wall systems
6>Shear walls
7>Retaining walls
8>Mechanically Stabilized Earth (M.S.E.) reinforcement
Specification for Hot size:
Item Size
Main Wire.:mm
Hole Shape
Sheet Weight:kgs
L8TM200
7.6
Rectangular hole
7.3
L8TM300
7.6
9.7
L11TM200
10.7
13
L11TM300
10.7
18
L12TM200
11.9
16
L12TM300
11.9
22
Acrs Concrete Wire Mesh Sizes:
