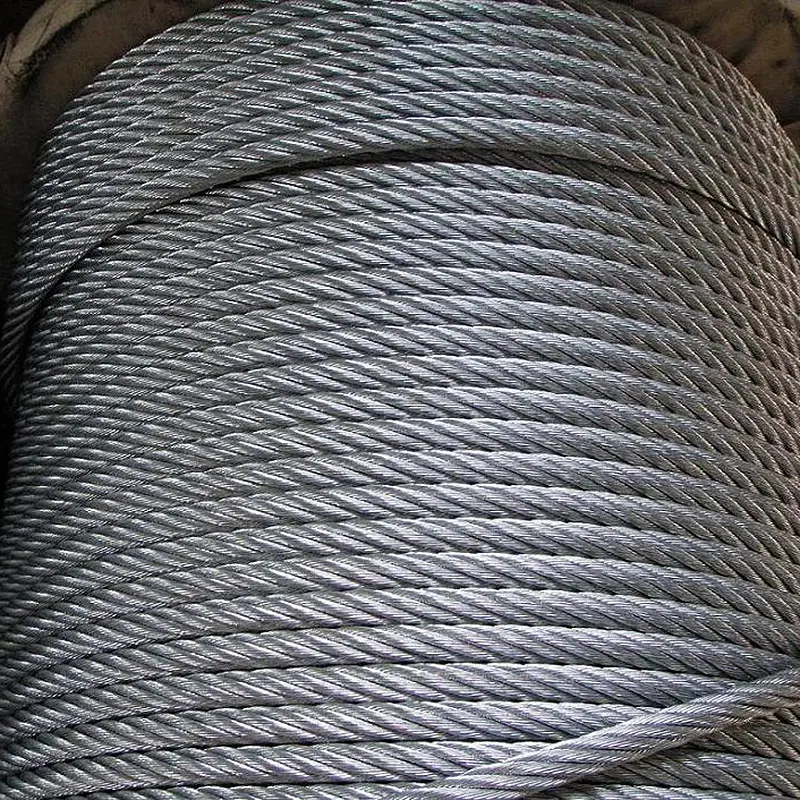

6*24+7FC galvanized Steel wire ropes 14mm

Steel Rope product with specification and export packing support

Product information:
Specification
6*24+7FC galvanized Steel wire ropes
Diameter Range
8mm~24mm
High Carbon Steel Wire Rod
55#;65#;70#;82A
Chemical Composition
C0.45%–0.70%
Standard
GB/T , DIN_EN_12385,BS302,ISO etc
Lay
Right hand regular lay(RHRL); Right hand lang lay(RHLL);
Left hand regular lay (LHRL); Left hand lang lay (LHLL)
Main applications
Various equipment for elevating liftinh and drawing, the rope with wire core canbe use under the shock load ,heated and squeezed conditions such as electric shovel,molten steel moving mechanism,etc.
Packaging material

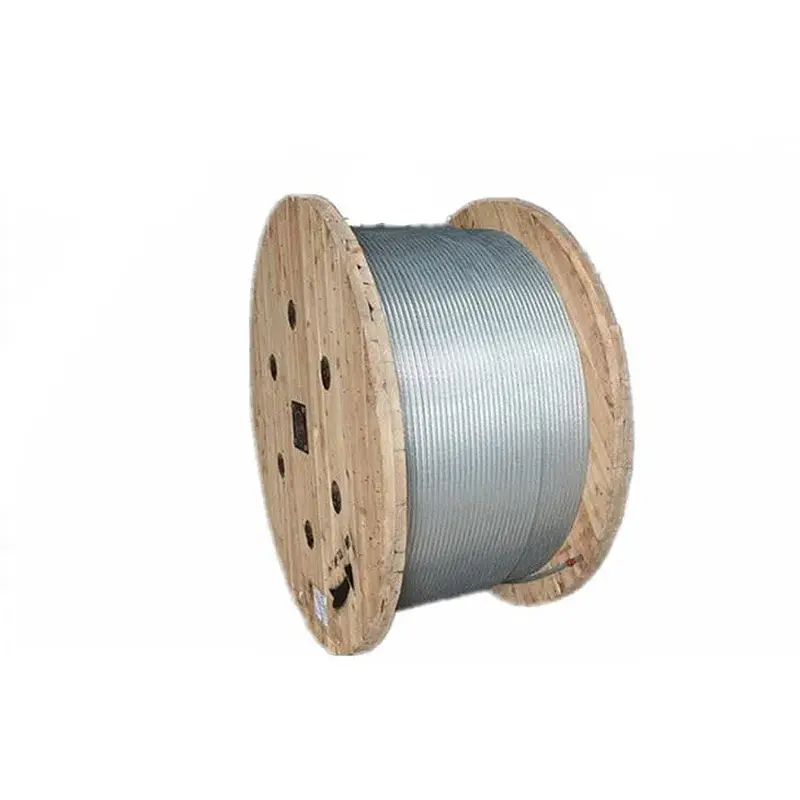

wooden reels, wooden pallets, Kraft paper
Package
1000m/reel~5000m/reel and other option as customer need
Wire ropes are standard products in various industrial countries. The diameter, number of strands, number of steel wires per share, tensile strength and sufficient safety factor can be selected according to the needs of use. Its specifications and models can be found in the relevant manuals. In addition to the wear of the outer layer steel wire, the wire rope is mainly broken due to metal fatigue caused by repeated bending when it goes around the pulley and the drum. Therefore, the ratio of the diameter of the pulley or the drum to the wire rope is an important factor in determining the life of the wire rope. If the ratio is large, the bending stress of the steel wire is small and the service life is long, but the
